1966 PA30B Turbo Twin Comanche N98NT - Price Pending

Robertson STOL - Midlife Engines - Always Hangared - Beautiful

Summary

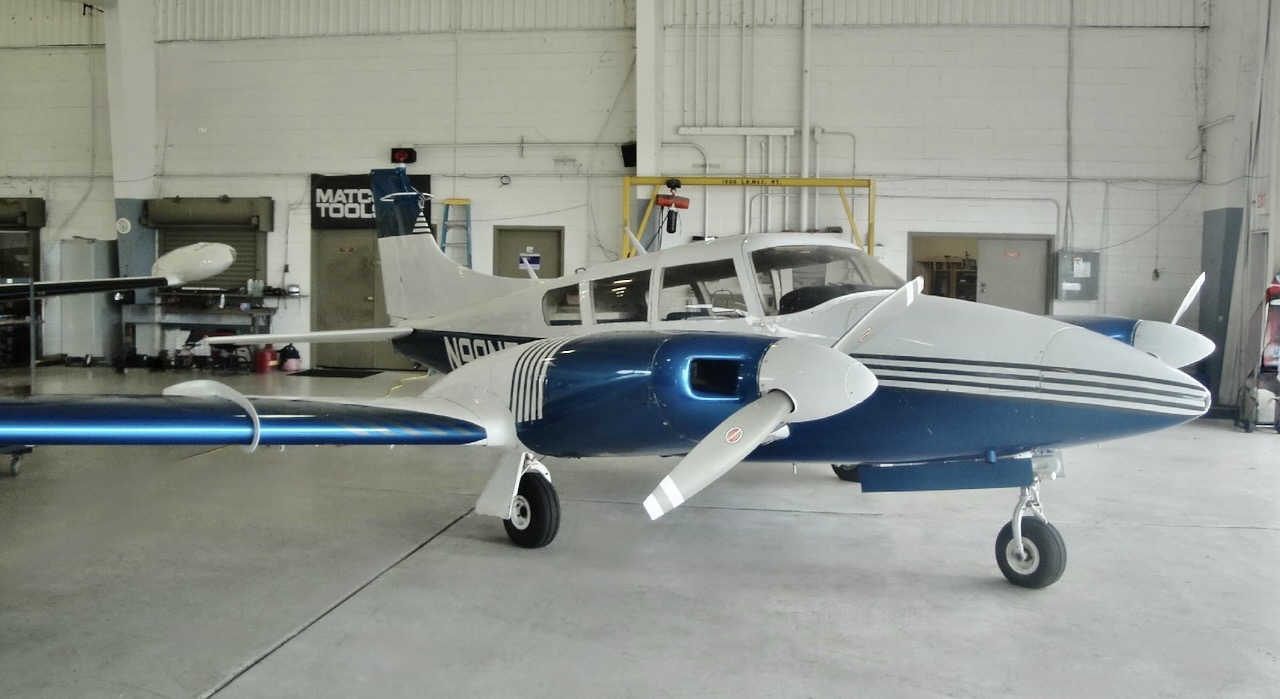

N98NT is a 1966 B-model factory Turbo Twin Comanche with the Robertson STOL modification. It is beautifully equipped with a new instrument panel, dual Garmin GI275s (AI and HSI), a Garmin GNX 375 all-in-one touchscreen GPS navigator / ADS-B transponder, and a digital EI CGR-30P engine management system. The airplane appears to have had excellent maintenance but all logs are missing prior to 2002 and it has no autopilot. It has beautiful paint and interior and would make a good platform for a Garmin GFC500 autopilot upgrade given its current condition, and the long life remaining on the its engines.

Click On The Photos Below to Enlarge The Slideshow

Airframe

Serial Number 30-927
Registration N98NT
AFTT 6,509.4
Seats 4 Seats
Damage History None
Hangared Yes
Complete Original Logs Partial Logbooks
Located Fallon, NV - KFLX
Annual Due Due Now
Txp / Static Check Due Due Now
ELT Batteries Due Due Now
AD 77-13-21 Part A Due Unknown
W&B (lbs) GW 3,600, EW XXXX, Useful XXXX, CG XX.XX"

Avionics

ADS-B Garmin GNX375 WAAS GPS /ADS-B I/O Txp
Autopilot Aircraft Has No Autopilot
Audio Panel / Marker Receiver Garmin GMA 345
Digital Instrument Garmin GI275 AI
Digital Instrument Garmin G5 DG/HSI
ELT ACK E-04 405 mHz ELT
Engine Management EI Dual CGR30P Digital Plus CGR30C
GPS 1 Garmin GNX375 IFR WAAS GPS Navigator
NavComms Dual Bendix King KX155 NavComms
Transponder Garmin GNX375 WAAS GPS / ADS-B I/O Txp

Aircraft Data - Turbo PA30B

Dimensions Height: 8' 3", Wing Span: 36' 0", Length: 25' 2", Cabin Height: 47", Cabin Width: 45", Cabin Length: 9' 0", Cabin Door Width: 34", Cabin Door Height: 32", Baggage Door Dimensions: 19" x 21". Main Baggage Space: 20, cu ft
Operating Weights Gross Weight: 3,600 lbs, Empty Weight: 2,207 lbs, Useful Load: 1,393 lbs, Standard Useable Fuel Capacity: 84 Gals, Payload w/ Standard Full Fuel: 889 lbs, Extended Useable Fuel Capacity 114 Gals, Payload w/ Full Useable Extended Fuel: 709 lbs, Main Baggage Capacity: 250,
Performance T/O Ground Roll: 1,250 ft, T/O Distance Over 50 Ft Obstacle: 2,160 ft, Landing Distance: 700 ft, Landing Distance Over 50 ft Obstacle: 2,100 ft, Initial Rate Of Climb: 1,460 fpm, Absolute Ceiling: 20,000 ft, Service Ceiling: 18,600 ft, Service Engine Absolute Ceiling: 7,100 ft, Single Engine Service Ceiling: 5,800 ft, Minimum Range: 775 nm, Maximum Range: 882 nm.
Specifications Wing Area: 178 sq ft, Wing Loading: 20.2 lbs/sf, Power Loading: 11.3 hp/sq ft, Standard Fuel (Total): 90 Gal, Standard Fuel (Useable): 84 Gal, Extended Fuel: 120 Gal, Extended Fuel (Useable): 114 Gal, Oil Capacity (Each Engine): 8 quarts, Wheel Base 7' 3", Wheel Tread 9' 8"

Engines & Propellers

Engines Left Engine - Lycoming IO-320-C1A, 160 HP, 2,000 TBO, S/N L-4890-55A, 1,213.4 SMOH. Compressions 75/72/76/77/ over 80. Right Engine - Lycoming IO-320-B1A, 160 HP, 2,000 TBO. S/N L-4891-55A, 1,213.4 SMOH. Compressions 76/78/76/72 over 80.

Propellers Left Propeller - Hartzell Model HC-E2YL-2RBS, 72" Diameter, Hub S/N BG888, 692.5 SPOH - Right Propeller - Hartzell Model HC-E2YL-2RBS, 72" Diameter, Hub S/N BG2907, 692.5 SPOH.

Airframe Enhancements / Modifications

Paint White polyurethane base coat w/Dark Blue and Dark Gray Trim Colors - Rated 7/10
Interior Dark New Two-Tone Gray Leather Seats, Blue Leather and Fabric Side Panels, Gray Carpeting - Rated 9/10

Other Modifications Avionics Master, alternators, One Piece Windshield, Excellent Glass, Built-In Oxygen, Robertson STOL Modification, Small Nose Wheel STC, Upper Door Latch, DeGroff Sun Visors, LED Landing Lights, Wingtip Strobes, K2U Upper Cabin Door Latch, Concorde AGM Battery, Ashby Glareshield, New Instrument Panel, Late Model Control Yokes, Baggage Door Steward, Copilot Vent Window, Hub Caps

Recent Maintenance Recent Lord engine mounts on L/R engines, L/R fuel boost pumps overhauled, Phill-Air L/R shoulder harnesses, recent Eagle fuel bladders, recent O/H fuel transmitters

Aircraft Data - Turbo PA30B

Speeds Never Exceed Speed Vne: 230 MPH, Max Structural Cruise Vno: 194 MPH, Maneuvering Speed Va: 162 MPH, Minimum Control Vmc: 90 MPH, Flaps Approach / Max Extension Speeds Vfe: 125 MPH, Landing Gear Extension Vlg: 150 MPH, Stall Speed Vs: 76 MPH, Stall Speed (Dirty) Vso: 69 MPH, Best Rate Of Climb Vy: 112 MPH, Best Rate Of Climb ISingle Engine) Vyse: 105 MPH, Best Angle Of Climb Vx: 90 MPH, Best Angle Of Climb (Single Engine) Vxse: 94 MPH, Single Engine Operation Vsse: 90 MPH, Cruise Climb Speed: 97 MPH, Best Glide Speed: 96 MPH.
