1972 PA39 Turbo Twin Comanche C/R - $199,000 OBO

Low-Time Engines, Beautiful Paint, Recent Interior and C/R Engines

Summary

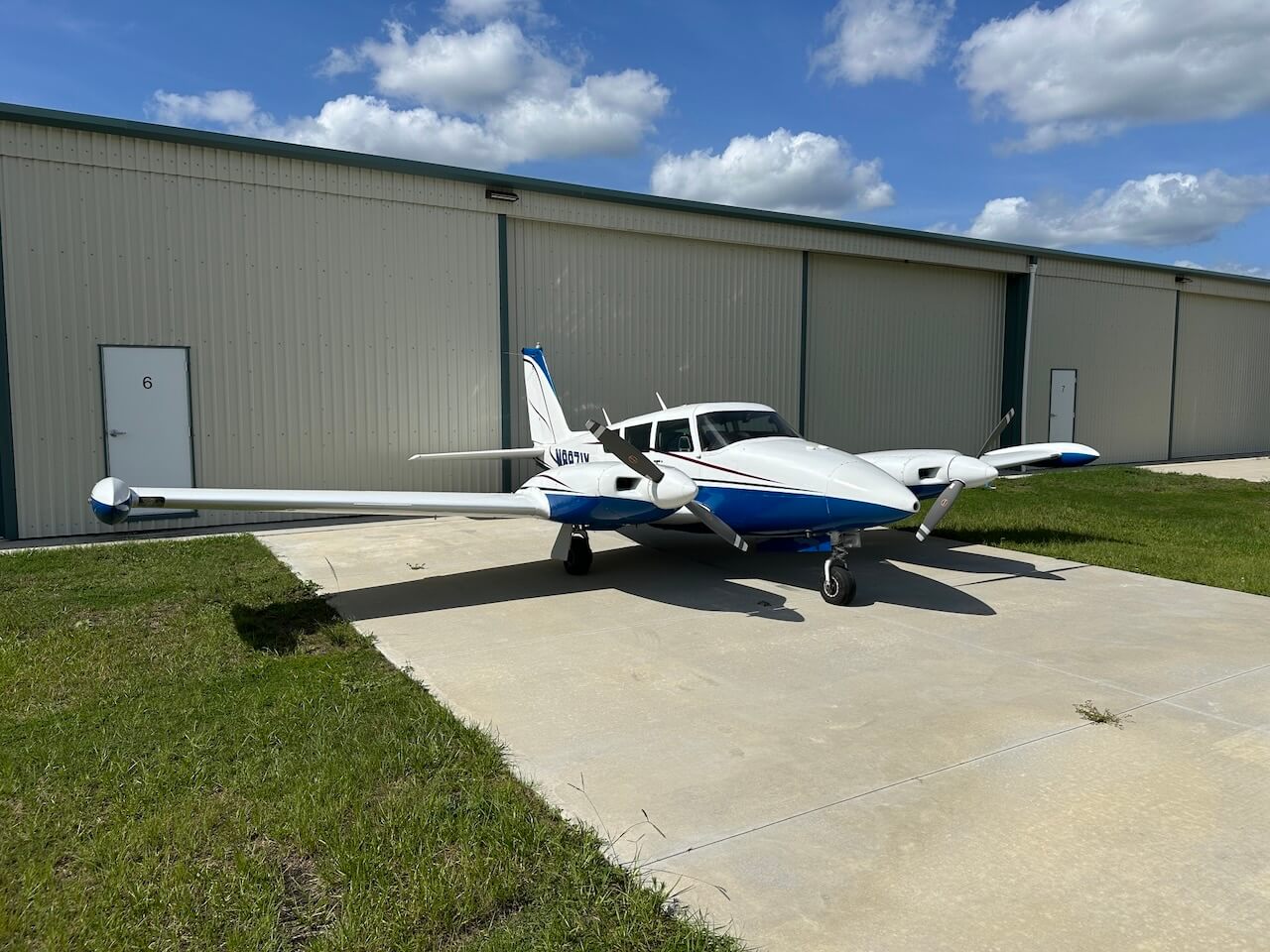

We are proud to represent N8971Y, a rare, late model, no damage history Piper PA-39 Turbo Twin Comanche C/R that we purchased for its current owner. The airplane is equipped with turbocharged, counter-rotating Lycoming IO/LIO-320-C1A, 1,800 TBO, 160HP engines. Of the 155 PA-39's that were manufactured between 1970 and 1972 at the Piper plant in Lock Haven, PA, this is serial number 39-134 and only a handful of these airplanes were factory-built with manual wastegate Rajay turbos. The airplane has been lovingly maintained and is for sale due to the recent death of it's current owner. This aircraft is available to Aircraft Associates' contract clients only with an executed Aircraft Acquisition Agreement. Contact us for more information.

Click On The Photos Below to Enlarge The Slideshow

Airframe

Serial Number 39-134
Registration N8971Y
AFTT 3,759.6
Seats 4 Seats
Damage History No Prior Damage
Hangared Yes - Always
Complete Original Logs Yes
Located Deland, FL - KDED
Annual Due 03/31/27
Txp / Static Check Due 03/31/28
AD 77-13-21 Part A Due 400 Hours
W&B (lbs) GW 3,725, EW 2542.7, Useful 1182.3, CG 82.49"

Avionics

Autopilot Altimatic IIIB 2-Axis A/P (Coupled)
Audio Panel / Marker Receiver King KMA24 w/ Marker Beacon
GPS 1 Garmin GNS 530W IFR WAAS GPS/VOR/LOC/Nav/Com
GPS 2 King KLN 89B IFR Approach GPS
NavComm 1 Bendix-King KX155 NavComm w/ GS
Storm Avoidance 3M WX900 Stormscope
Fuel Flow Computer Shadin DigiFlo-L
Transponder Garmin GTX 330 ES ADS-B Out Transponder
Intercom FlightCom 403D 4-Place
Engine Monitoring JPI EDM 760
ELT Artex 406
Other Avionics Master, Garmin GI 106B Indicator, Dual Horizon P1000 Digital Tachs, JPI Slim-Line Alternator Gauge, GPSS Roll Steering,

Aircraft Data - PA39 Turbo

Dimensions Height 8 ft 3 in, Wing Span: 36 ft 0 in (36 ft 10 in w/ Tip Tanks), Length: 25 ft 2 in, Cabin Height: 4 ft 2 In, Cabin Width: 3 ft 6 In, Cabin Length: 9 ft 0 In, Door Height: 2 ft 8 In, Door Width: 2 ft 10 In, Wheel Base 9 ft 10 In

Operating Weights Max Ramp Wt: 3,725 lbs, Max T/O Wt: 3,725 lbs, Max Landing Wt: 3,725 lbs, Empty Wt: 2,416 Lb, Fuel Capacity: 120 Gal, Useful Load: 1,309 Lb, Payload w/Full Fuel: XXX lbs, Max Baggage Wt: 250 lbs Baggage Compartment.
Wing Area/Loading Area 178 SF, Wing Loading - 20.9 lbs/SF w/o tip tanks , 19.71 lbs/SF w/tip tanks. Power Loading - 11.7 lb/hp w/o tip tanks, 12.28 lb/hp w/tip tanks.
Speeds Max Speed Vne: 200 kts, Max Structural Cruise Vno: 168 kts, Flaps Ext Speed Vfe: 108 kts, Landing Gear Extension Vlo: 130 kts, Landing Gear Extension Vle: 130 kts, Minimum Controllable Vmc: 78 kts, Stall Speed VS1: 66 kts, Stall Speed Vso: 61 kts, Maneuvering Speed Va: 141 kts, Best Angle Vx: 78 kts, Best Rate Vy: 97 kts, Best Rate Single Engine Vyse: 91 kts

Fuel/Oil Fuel - 120 Gal Total, 114 Gal Useable (506 lbs), Oil Capacity Per Engine - 8 Quarts
Range Normal (75% Power, 8,000 ft, 168 kts, 17.2 gph) 1,188 NM,

Engines & Propellers

Engines Lycoming IO/LIO-320-C1A, 160 HP, 2,000 TBO Engines. Left Engine - IO-320-C1A, 160 HP, 1,800 TBO, S/N L-4014-55A, 186.7 SMOH in 2020, Compressions 77/ 78/ 76/ 77 over 80. Right Engine - Lycoming LIO-320-C1A, 160 HP, 1,800 TBO. S/N L-292-66A, 105.9 SMOH in 2023, Compressions 76/ 787/ 76/ 70 over 80.
Propellers Left Propeller - Hartzell Model HC-E2YL-2BSF, 2 Blade, 209 SPOH in 2015, Hub S/N BG25, Right Propeller - Hartzell Model HC-E2YL-2BLS, 2 Blade, 0 SPOH in 2024, Hub S/N BG310

Airframe Enhancements / Modifications

Exterior Paint Matterhorn White with Royal Blue, Dark Burgundy, Dark Gray Trim Colors
Interior Gray Carpeting, Gray Vinyl Sidewalls, Seats are Blue Fabric with/ Tan Vinyl Trim
Other 120 Gallon Fuel w/15 Gal Brittain Tip Tanks, RayJay Manual Wastegate Turbochargers, Plane Power Alternators, One Piece W/S, Static Wicks, LED Strobe, Speed Splitters, Gear Lobe Fairings, HID Landing Light, Small Nose Wheel STC, Baggage Door Steward, Headrests, Shoulder Harnesses, Upper Door Latch, Copilot Vent Window, Vertical Card Compass, Built-In Oxygen

Recent Maintenance TBD

Performance - PA39 Turbo

Distances T/O Ground Roll: 990 ft, T/O 50ft Obstacle: 1,590 ft, Landing Distance: 725 ft, Landing Distance 50ft Obstacle: 1,900 ft
Performance Initial Rate of Climb: 1,460 fpm, Best SE Rate Of Climb: 225 FPM, Max Speed: 214 kts, Normal Cruise: 192 kts, Service Ceiling: 25,000 ft, SE Service Ceiling 12,600 ft
