1969 PA30C Twin Comanche N8666Y - Price Pending

Midlife Engines - Late-Model - Well-Maintained

Summary

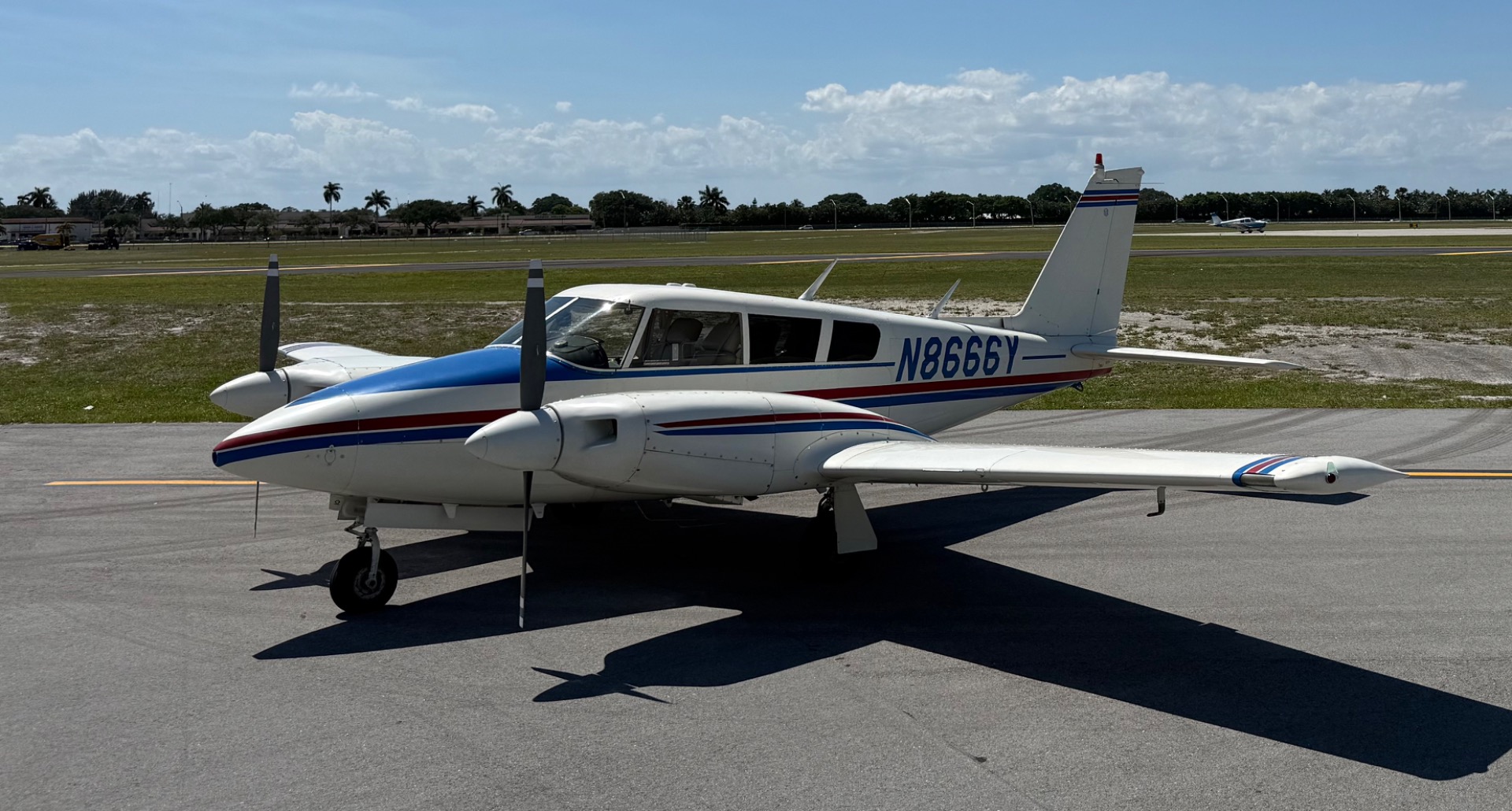

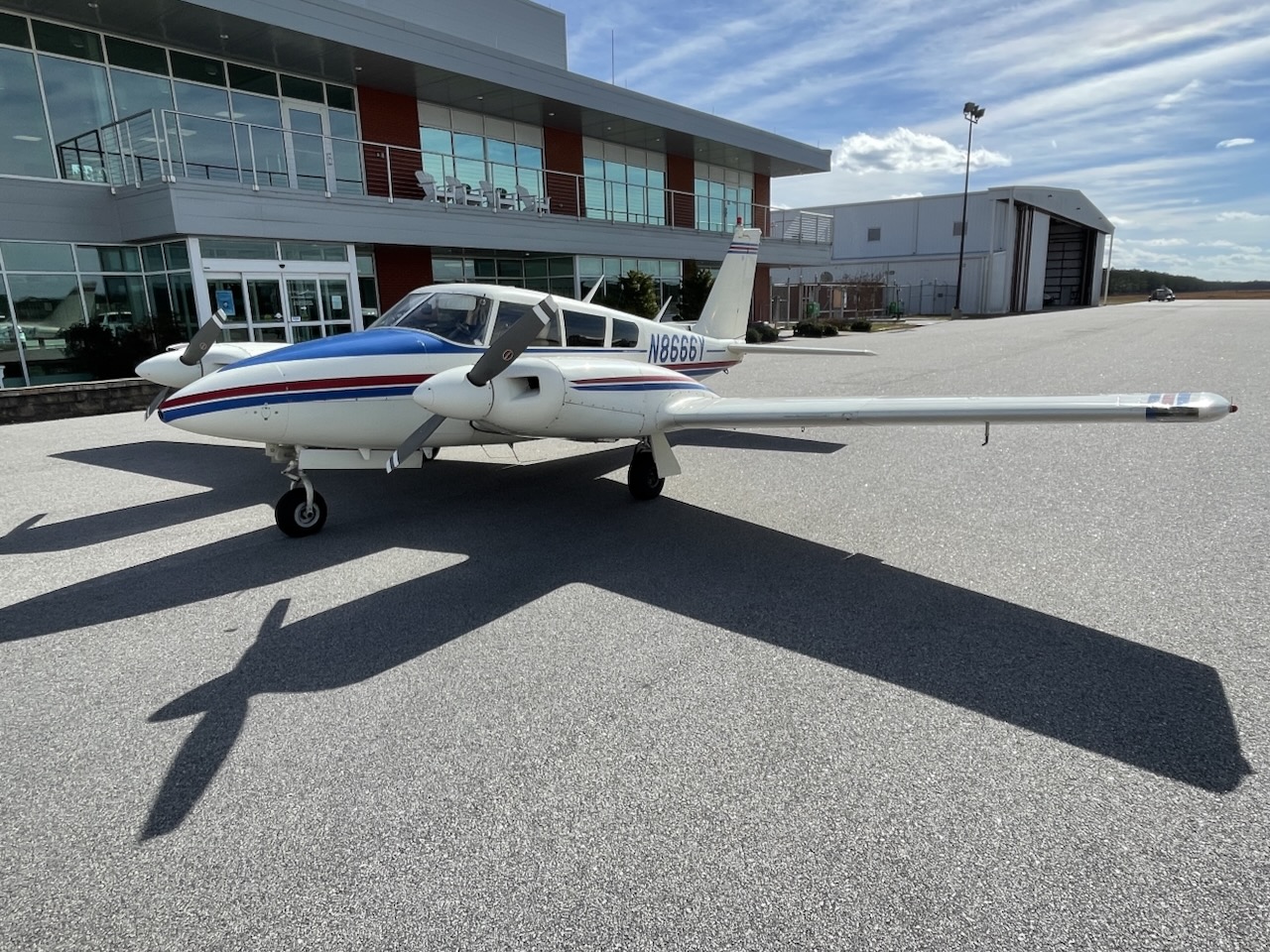

N8666Y is a 1969 C-model Twin Comanche. It has been flying regularly for time-building and training by the owner and has had consistent, thorough maintenance under his ownership. With engine TMSOH averages just above mid-life, this airplane is a good candidate for further time building or future avionics or cosmetic upgrades. The owner is selling due to wanting to upgrade himself to a larger twin that better fits his current mission.

Click On The Photos Below to Enlarge The Slideshow

Airframe

Serial Number 30-1797
Registration N8666Y
AFTT 8,029.53
Seats 4 Seats + Family Seat (not installed)
Damage History None
Hangared Previously, but not currently
Logbooks Complete Original
Located Palm Beach County, FL - KLNA
Annual Due 02/28/27
Txp / Static Check Due 12/31/26
ELT Batteries Due 07/2026
AD 77-13-21 Part A Due 301.9 hours remaining
W&B (lbs) GW 3,600, EW XXXX, Useful XXXX, CG XX.XX"

Avionics

ADS-B Garmin GTX 345 ADS-B I/O
Autopilot Altimatic III 2- Axis A/P (Altitude hold INOP)
Audio Panel / Marker Receiver Bendix King KMA 24
DME Bendix King KN 64
Engine Management JPI EDM 760
GPS 1 Garmin 396 IFR GPS
GPS 2 Garmin GTN650xi IFR WAAS GPS Navigator
HSI Bendix King KCS 55A Slaved Compass System
NavComm Bendix King KX155 NavComm
Stormscope 3M WX8
Transponder Garmin GTX 345 ADS-B I/O

Aircraft Data - PA30C

Dimensions Height: 8' 3", Wing Span: 36' 0", Length: 25' 2", Cabin Height: 47", Cabin Width: 45", Cabin Length: 9' 0", Cabin Door Width: 34", Cabin Door Height: 32", Baggage Door Dimensions: 19" x 21". Main Baggage Space: 20 cu ft.
Operating Weights Gross Weight: 3,725 lbs, Empty Weight: 2,384 lbs, Useful Load: 1,341 lbs, Standard Useable Fuel Capacity: 114 Gals, Payload w/ Standard Full Fuel: 657 lbs, Extended Useable Fuel Capacity 114 Gals, Payload w/ Full Useable Extended Fuel: 657 lbs, Main Baggage Capacity: 250 lbs.
Performance T/O Ground Roll: 1,300 ft, T/O Distance Over 50 Ft Obstacle: 2,285 ft, Landing Distance: 700 ft, Landing Distance Over 50 ft Obstacle: 2,155 ft, Initial Rate Of Climb: 1,290 fpm, Absolute Ceiling: 25,000 ft, Service Ceiling: 25,000 ft, Service Engine Absolute Ceiling: 12,600 ft, Single Engine Service Ceiling: 8,800 ft, Minimum Range: 1,143 nm, Maximum Range: 1,204 nm.
Speeds Never Exceed Speed Vne: 230 KIAS, Max Structural Cruise Vno: 194 KIAS, Maneuvering Speed Va: 162 KIAS, Minimum Control Vmc: 90 KIAS, Flaps Approach / Max Extension Speeds Vfe: 125 KIAS, Landing Gear Extension Vlg: 150 KIAS, Stall Speed Vs: 76 KIAS, Stall Speed (Dirty) Vso: 69 KIAS, Best Rate Of Climb Vy: 112 KIAS, Best Rate Of Climb ISingle Engine) Vyse: 105 KIAS, Best Angle Of Climb Vx: 90 KIAS, Best Angle Of Climb (Single Engine) Vxse: 94 KIAS, Single Engine Operation Vsse: 90 KIAS, Cruise Climb Speed: 97 KIAS, Best Glide Speed: 96 KIAS.

Engines & Propellers

Engines Left Engine - Lycoming IO-320-B1A, 160 HP, 2,000 TBO, S/N L-5860-55A, 827.33 SMOH (2021). Compressions #1)75/80 #2)76/80 #3)65/80 #4)73/80. Right Engine - Lycoming IO-320-B1A, 160 HP, 2,000 TBO. S/N L-5861-55A, 1,475.72 SMOH (2009). Compressions #1)79/80 #2)77/80 #3)66/80 #4)69/80.

Propellers Left Propeller - Hartzell Model HC-E2YL-2BSF, 72" Diameter, Hub S/N BG4586, 1870.2 SPOH (2005) - Right Propeller - Hartzell Model HC-E2YL-2RBS, 72" Diameter, Hub S/N BG3066, 1882.7 SPOH (2005).

Airframe Enhancements / Modifications

Paint Off White base coat w/ Royal Blue and Dark Red Trim Colors
Interior Tan Leather Seats and Side Panels, and Carpeting

Other Modifications SS Exhaust Fairings, Exhaust Extensions, Strobe Beacon w/ K2U Fin Cap, Gear Mirror, LED Landing Lights, Small Nose Wheel STC

Recent Maintenance New 1/4" windshield,

Aircraft Data - PA30C

Specifications Wing Area: 178 sq ft, Wing Loading: 20.9 lbs/sf, Power Loading: 11.7 hp/sq ft, Standard Fuel (Total): 90 Gal, Standard Fuel (Useable): 84 Gal, Oil Capacity (Each Engine): 8 quarts.
