1969 PA30C Twin Comanche C/R N8614Y - Under Contract

Extensive Airframe Upgrades and Low-time Engines & Props

Summary

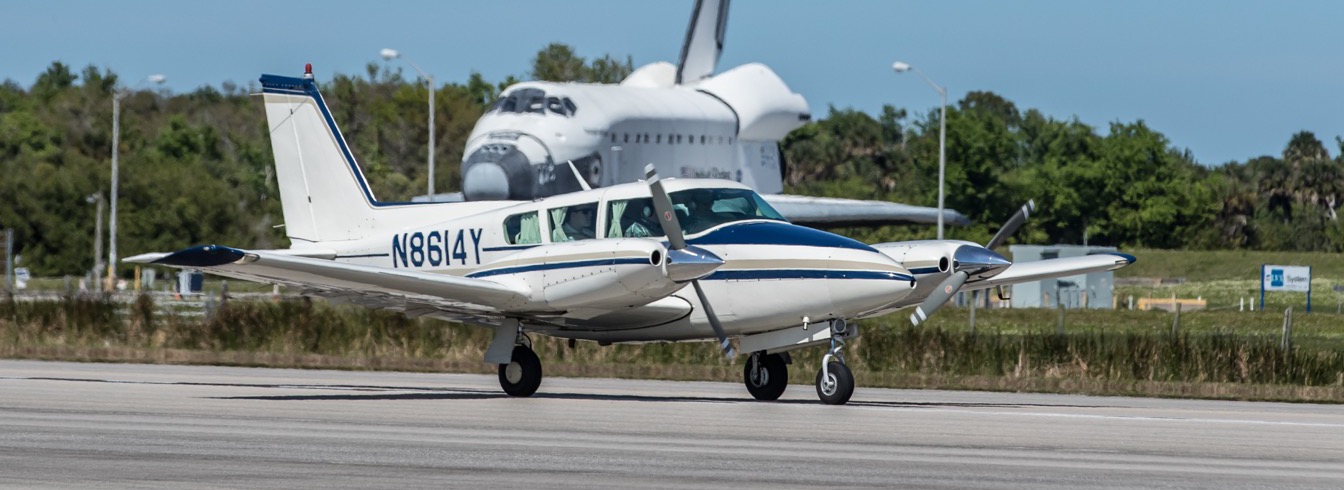

N8614Y is a 1969 Twin Comanche C Model that has been highly modified including C/R (counter-rotating) engines. The aircraft has been owned for many years by a well experienced pilot and based Northwest of Atlanta, GA. The airplane has high airframe time at 7,000 hours but has had superb maintenance with no damage history.

Click On The Photos Below to Enlarge The Slideshow


Airframe

  • Serial Number 30-1754
  • Registration  N8614Y
  • AFTT  7,091
  • Seats 6 Seats
  • Damage History None
  • Hangared Yes
  • Complete Original Logs Yes
  • Located Cartersville, GA - KVPC
  • Annual Due  01/31/24
  • Txp / Static Check Due 03/31/24
  • ELT Batteries Due 10/31/25
  • AD 77-13-21 Part A Due  8,091 AFTT
  • W&B (lbs)  GW 3,600, EW 2,557, Useful 1,043, CG 82.51"

Avionics

  • Autopilot Century 2000 2-Axis A/P (Coupled)
  • Audio Panel / Marker Receiver Garmin GMA 340
  • GPS 1  Garmin GNS 530W IFR WAAS GPS/VOR/LOC/Nav/Com
  • GPS 2 Garmin GNS 430W IFR WAAS GPS w/ GI-106A Indicator
  • Primary EFIS  Aspen EFD 1000
  • Storm Avoidance  BFG WX-900 Stormscope
  • Fuel Flow Computer Shadin DigiFlo-L System 910522P
  • Transponder Garmin GTX 345 ADS-B I/O
  • ADS-B Garmin GTX 345 ADS-B I/O
  • Intercom Garmin GMA 340
  • Engine Monitoring EI US-8A Scanning CHT/EGT Gauge
  • Other Avionics Master, PSE CD Player, Dual Glideslopes, Davtron 303-1 Digital OAT/Voltage Gauge,

Aircraft Data - PA30C

  • Dimensions Height 8 ft 3 in, Wing Span: 36 ft 0 in, Length: 25 ft 2 in, Tailplane Span: 12 ft 6 in, Wheel Track: 9 ft 10 in, Wheelbase: 7 ft 4 in, Turn Radius 25 ft 6 in, Prop Ground Clearance 10 in, Cabin Height: 3 ft 4 In, Cabin Width: 3 ft 8 In, Cabin Length: X ft X In, Door Height: 3 ft 0 In, Door Width: X ft 1 In, Cabin Door 20" x 20"
  • Operating Weights Max Ramp Wt (Standard/Tips): 3,600/3,725 lbs, MaxT/O Wt: 3,600/3,725 lbs, Max Landing Wt: 3,600/3,725 lbs, Standard Empty Wt: 2,207 Lb, Normal Fuel Capacity: 504 lbs, Aux Fuel Capacity: 720 lbs, Max Useful Load: 1,393 Lb, Payload W/Full Normal Fuel: 796 lbs, Max Baggage Wt: 200 lbs, Baggage Area Volume 20 cu ft
  • Wing Area/Loading Area 178 SF, Loading 20.2 lbs/sq ft w/o tip tanks , 19.71 lbs/sq ft w/tip tanks
  • Power Loading 11.3 lb/hp w/o tip tanks, 12.28 lb/hp w/tip tanks
  • Wheel Base 7.3 ft
  • Wheel Tread 9.8 ft
  • Oil Capacity 8 Qts Each Engine
  • Fuel Normal 90 Gal Total, 84 Gal Useable (504 lbs), Tip Tanks 120 Gal (720 lbs)
  • Range With Normal Fuel (90 Gal) @ (75%) 785 NM, @ (55%) 825 NM, With Aux Fuel (120 Gal) @ (75%) 1,120 NM, @ (55%) 1,265 NM

Engines & Propellers

  • Engines Left Engine - Lycoming IO-320-B1A, 160 HP, 2,000 TBO, S/N L-1161-55A, 360 SMOH in 2017, Compressions 74/ 70/ 79/ 68/. Right Engine - Lycoming LIO-320B1A, 160 HP, 2,000 TBO. S/N L-311-66A, 360 SFRM in 2017, Compressions 72/ 68`/ 70/ 72/
  • Propellers Left Propeller - Hartzell Model HC-E2YL-2BS, 72" Diameter, Hub S/N BG3659, 29 SPOH in 2021 - Right Propeller - Hartzell Model HC-E2YK-2BLS,72" Diameter, Hub S/N BG3679, 29 SPOH in 2021

Airframe Enhancements / Modifications

  • Paint Nave Blue and Buckskin over Cream - Rated 8/10
  • Interior Tan Leather Seats w/ Headrests and Black Seat Belts, Matching Side Panels w/ Navy Blue Leather Trim - Rated 6/10

  • Other Modifications One Piece W/S, LED Nose Taxi Light, Small Nose Wheel STC, Wow Cowls, Speed Spinners, Speed Splitters, Gear Lobe Fairings, SS Nacelle Exhaust Fairings HID Landing Lights, Metco Wingtips, Flap & Aileron Gaps Seals, Static Wicks, 3-Point Strobe Lights, Nav Light Tell Tails, Upper Cabin Door Latch, Wing Filets, Strobe Beacon, Belly Strobe, Baggage Door Pneumatic Strut, 6 Seats, SkyTec Starters, Gear Mirror, Tinted Glass, Window Curtains, Vertical Card Compass, Rosen Visors, Standby AI, K2U Gear Alert System, Shoulder Harnesses

  • Recent Maintenance XXXX

Performance - PA30C

  • Distances T/O Ground Roll: 940 ft, T/O 50ft Obstacle: 1,530 ft, Landing Distance: 1,215 ft, Landing Distance 50ft Obstacle: 1,870 ft
  • Performance Initial Rate of Climb: 1,460 fpm Max Speed: 178 kts, Normal Cruise: 172 kts, Economy Cruise: 144 kts, Service Ceiling: 20,000 ft, SE Service Ceiling 7,100 ft
  • Speeds Never Exceed Speed Vne: 200 kts, Top Speed 178 kts, Cruise Speed 172 kts, Max Structural Cruise Vno: 169 kts, Flaps Ext Speed Vfe: 108 kts, Landing Gear Extension Vlo: 130 kts, Landing Gear Extension Vlo & Vle: 130 kts, Minimum Controllable Vmc: 70 kts, Stall Speed VS1: 66 kts, Stall Speed Vso: 60 kts, Maneuvering Speed Va: 132 kts, Rotate Speed Vr: 75 kts, Best Angle Vx: 78 kts, Best Rate Vy: 97 kts, Best Angle Single Engine Vxse: 82 ktsBest Rate Single Engine Vyse: 91 kts, Vglide: 96 kts, Vapproach:  83 kts,

Aircraft Location

Cartersville Airport - KVPC
Cartersville, GA, USA


Aircraft Records
