1967 Piper PA30 Twin Comanche N8375Y - Coming Soon

Factory Turbo - 120 Gal Fuel - Many Mods - Clean

Summary

N8375Y is a 1967 PA30 Twin Comanche, updated avionics, and the Robertson STOL modification. This late model PA39 is highly modified with Q-Tip Hartzell props, K2U nose bowls, speed spinners, Tanis engine heaters, SkyTech starters, gear lobe fairings, small nose wheel and a nose gear taxi light. Long range tanks give the airplane a range in excess of 1500 nautical miles. While the airplane has it's original logbooks, there are partial logs missing prior to 1977.

Click On The Photos Below to Enlarge The Slideshow

Airframe

Serial Number 30-1529
Registration N8375Y
AFTT 4,750
Hobbs Meter XXXX
Seats 6 Seats
Damage History None
Hangared Yes
Complete Original Logs Yes

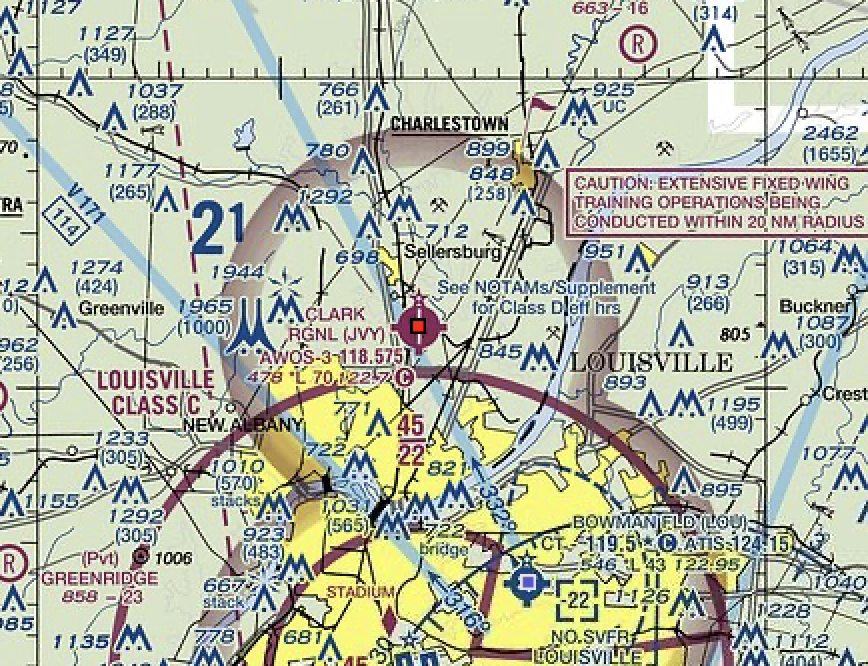

Located KJVY - Jeffersonville, IN
Annual Due XXXX
Txp / Static Check Due XXXX
ELT Batteries Due XXXX
AD 77-13-21 Part A Due XXXX AFTT
Heater Decay Test Due XXXX
W&B (lbs) GW 3,600 Lbs, EW - 2,337 Lbs, UL - 1,263 Lbs, XX - 82.00"

Avionics

ADS-B L3 Lynx NGT-9000 ADS-B I/O
Attitude Indicator Garmin G5 Attitude Indicator
Autopilot STEC 30 w/ Alt Hold and GPSS Roll Steering
Audio Panel Garmin 345 Audio Panel w/ Connectivity
Comm 1 King KY197 Comm Transceiver
Engine Management EI CGR30P Primary w/ CGR30C Display
Fuel Flow System Shadin Digi-Flo Fuel System
GPS 1 Avidyne IFD440 IFR WAAS GPS/NAV/COM
GPSS GPSS Roll Steering Module
HSI Garmin G5 Compass System
Intercom NAT Intercom
Nav 1 King KN53 Nav Receiver
Transponder L3 Lynx NGT-9000 ADS-B I/O w/ Traffic Display
Other Avionics Master Switch, Dual Glideslopes, Dual USB Power Plugs.

Aircraft Data - PA30B

Dimensions Height 8 ft 3 in, Wing Span: 36 ft 0 in, Length: 25 ft 2 in, Tailplane Span: 12 ft 6 in, Wheel Track: 9 ft 10 in, Wheelbase: 7 ft 4 in, Turn Radius 25 ft 6 in, Prop Ground Clearance 10 in, Cabin Height: 3 ft 4 In, Cabin Width: 3 ft 8 In, Cabin Length: X ft X In, Door Height: 3 ft 0 In, Door Width: X ft 1 In, Cabin Door 20" x 20"
Operating Weights Max Ramp Wt (Standard/Tips): 3,600/3,725 lbs, MaxT/O Wt: 3,600/3,725 lbs, Max Landing Wt: 3,600/3,725 lbs, Standard Empty Wt: 2,207 Lb, Normal Fuel Capacity: 504 lbs, Aux Fuel Capacity: 720 lbs, Max Useful Load: 1,393 Lb, Payload W/Full Normal Fuel: 796 lbs, Max Baggage Wt: 200 lbs, Baggage Area Volume 20 cu ft
Wing Area/Loading Area 178 SF, Loading 20.2 lbs/sq ft w/o tip tanks , 19.71 lbs/sq ft w/tip tanks
Power Loading 11.3 lb/hp w/o tip tanks, 12.28 lb/hp w/tip tanks
Wheel Base 7.3 ft
Wheel Tread 9.8 ft
Oil Capacity 8 Qts Each Engine
Fuel Normal 90 Gal Total, 84 Gal Useable (504 lbs), Tip Tanks 120 Gal (720 lbs), w/ Webco 10 Gallon Nacelle Tanks 110 Gal Total (624 lbs) 104 Useable, w/ PhillAir 20 Gallon Nacelle Tanks 140 Gal Total (804 lbs) 134 Useable
Range With Normal Fuel (90 Gal) @ (75%) 785 NM, @ (55%) 825 NM, With Aux Fuel (120 Gal) @ (75%) 1,120 NM, @ (55%) 1,265 NM
Distances T/O Ground Roll: 940 ft, T/O 50ft Obstacle: 1,530 ft, Landing Distance: 1,215 ft, Landing Distance 50ft Obstacle: 1,870 ft
Performance Initial Rate of Climb: 1,460 fpm Max Speed: 178 kts, Normal Cruise: 172 kts, Economy Cruise: 144 kts, Service Ceiling: 20,000 ft, SE Service Ceiling 7,100 ft

Engines

Engines Left Engine - Lycoming IO-320-B1A, S/N L-3247-55A, 160 HP, 2,000 TBO, 406 SMOH in 2010, Compressions 1-78/80, 2-76/80, 3-72/80, 4-72/80. Right Engine - Lycoming IO-320-B1A, S/N L-3239-55A, 160 HP, 2,000 TBO, 1,565.2 SMOH in 1996, 899 STOH in 2002, Compressions 1-72/80, 2-76/80, 3-72/80, 4-74/80.

Propellers

Propellers Left Prop - 344 SPOH in 2019. Right Prop - 344 SPOH in 2019.

Airframe Enhancements / Modifications

Paint Matterhorn White Base Color, Biege and Cranberry Red Trim stripes, Rated 7/10.
Interior Red Leather Seats, Rated 7/10.
Other Modifications One Piece Windshield, Six Seats, Reiff Engine Sump Heaters, Jet Shades, Static Wicks, 3-Point Strobes, Small Nose Wheel STC, Tinted Glass, Flap Aileron & Rudder Gap Seals, Hub Caps, Polished Spinners, Metco Wingtips, Hubcaps, GAMIs, Vacuum System Removed, Vertical Card Compass

Performance - PA30B

Speeds Never Exceed Speed Vne: 200 kts, Top Speed 178 kts, Cruise Speed 172 kts, Max Structural Cruise Vno: 169 kts, Flaps Ext Speed Vfe: 108 kts, Landing Gear Extension Vlo: 130 kts, Landing Gear Extension Vlo & Vle: 130 kts, Minimum Controllable Vmc: 70 kts, Stall Speed VS1: 66 kts, Stall Speed Vso: 60 kts, Maneuvering Speed Va: 132 kts, Rotate Speed Vr: 75 kts, Best Angle Vx: 78 kts, Best Rate Vy: 97 kts, Best Angle Single Engine Vxse: 82 ktsBest Rate Single Engine Vyse: 91 kts, Vglide: 96 kts, Vapproach: 83 kts
