1967 Piper PA30 Twin Comanche N8375Y - $128,900

Midwest-Based - No Damage History - Always Hangared - Very Clean

Summary

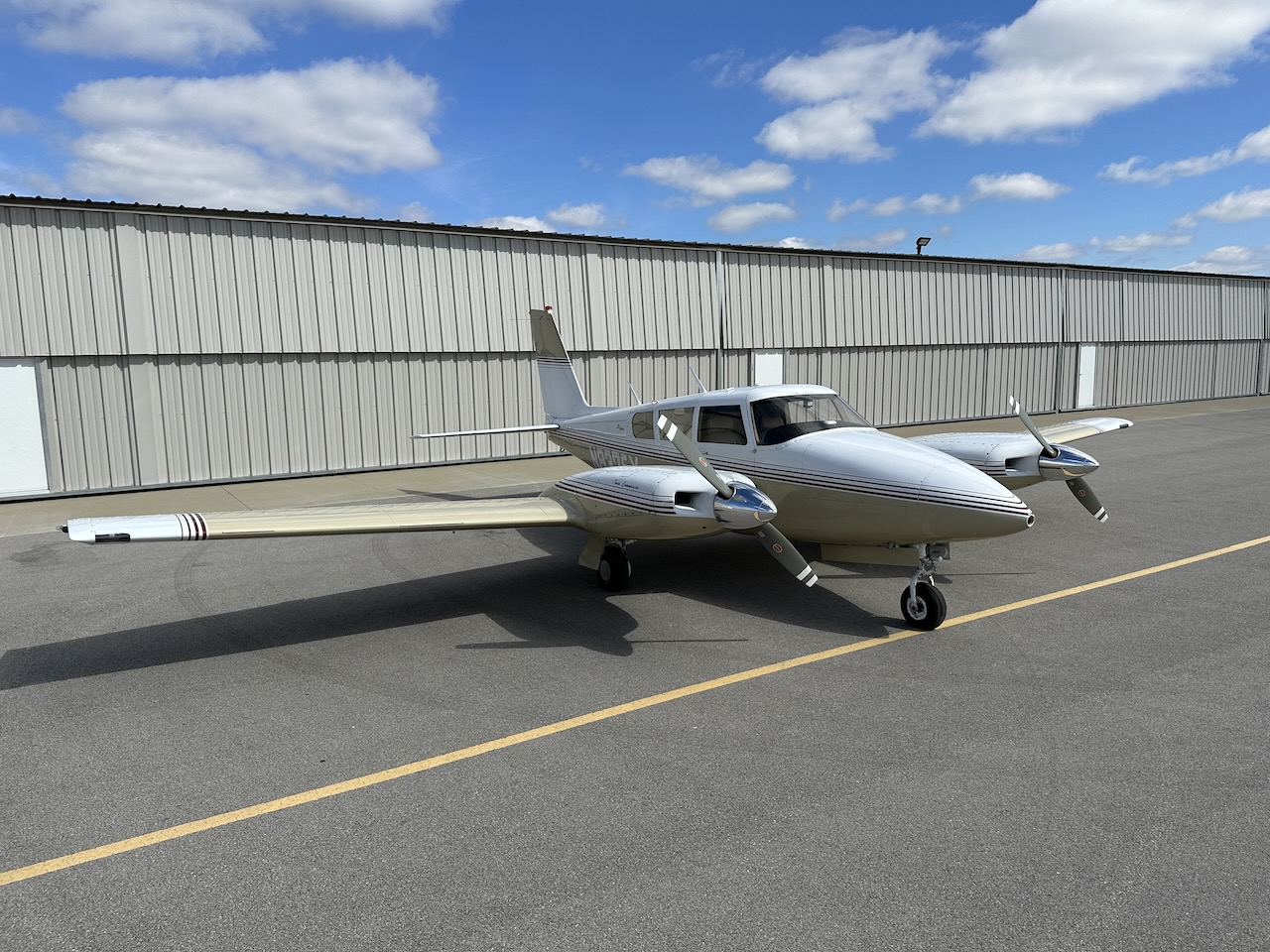

N8375Y is a beautiful 1967 PA30B Twin Comanche, with updated avionics, and many airframe modifications. This Midwest-based airplane has been lovingly maintained by it's long term owner who is upgrading to a pressurized twin. Engine heaters, SkyTech starters, flap and rudder gap seals, small nose wheel STC, original logbooks, GAMIs.

Click On The Photos Below to Enlarge The Slideshow

Airframe

Serial Number 30-1529
Registration N8375Y
AFTT 4,750
Hobbs Meter XXXX
Seats 6 Seats
Damage History None
Hangared Yes
Complete Original Logs Yes
Located KJVY - Jeffersonville, IN
Annual Due XXXX
Txp / Static Check Due XXXX
ELT Batteries Due XXXX
AD 77-13-21 Part A Due XXXX AFTT
Heater Decay Test Due XXXX
W&B (lbs) GW 3,600 Lbs, EW - 2,337 Lbs, UL - 1,263 Lbs, XX - 82.00"

Avionics

ADS-B L3 Lynx NGT-9000 ADS-B I/O
Attitude Indicator Garmin G5 Attitude Indicator
Autopilot STEC 30 w/ Alt Hold and GPSS Roll Steering
Audio Panel Garmin 345 Audio Panel w/ Connectivity
Comm 1 King KY197 Comm Transceiver
ELT 406 mHz ELT
Engine Management EI CGR30P Primary w/ CGR30C Display
Fuel Flow System Shadin Digi-Flo Fuel System
GPS 1 Avidyne IFD440 IFR WAAS GPS/NAV/COM
GPSS GPSS Roll Steering Module
HSI Garmin G5 Compass System
Intercom NAT Intercom
Nav 1 King KN53 Nav Receiver
Transponder L3 Lynx NGT-9000 ADS-B I/O w/ Traffic Display
Other Avionics Master Switch

Aircraft Data - PA30B

Dimensions Height: 8' 3", Wing Span: 36' 0", Length: 25' 2", Cabin Height: 47", Cabin Width: 45", Cabin Length: 9' 0", Cabin Door Width: 34", Cabin Door Height: 32", Baggage Door Dimensions: 19" x 21"
Operating Weights Gross Weight: 3,600 lbs, Empty Weight: 2,207 lbs, Useful Load: 1,393 lbs, Standard Fuel Capacity: 84 Gal Useable, Payload w/ Standard Full Fuel: 889 lbs, Extended Fuel Capacity 114 Gal Useable, Payload w/ Extended Full Fuel: 709 lbs, Main Baggage Area Capacity 250 lbs, Main Baggage Area Space 20 cu ft
Wing Area/Loading Wing Area: 178 sq ft, Wing Loading: 20.2 lb/sq ft, Power Loading: 11.3 hp/sq ft, Power Loading 11.3 lb/hp w/o tip tanks, 12.28 lb/hp w/tip tanks
Fuel / Oil Capacities Normal 90 Gal Total, 84 Gal Useable (504 lbs), Tip Tanks 120 Gal (720 lbs), w/ Webco 10 Gallon Nacelle Tanks 110 Gal Total (624 lbs) 104 Useable, w/ PhillAir 20 Gallon Nacelle Tanks 140 Gal Total (804 lbs) 134 Useable. Oil Capacity 8 Quarts / Engine
Range With Normal Fuel (90 Gal) @ (75%) 785 NM, @ (55%) 825 NM, With Aux Fuel (120 Gal) @ (75%) 1,120 NM, @ (55%) 1,265 NM
Performance Normal Rate Of Climb: 1,460 fpm, Best SE Rate Of Climb: 260 fpm, Takeoff Roll: 1,250 ft, Takeoff Roll (Over 50 ft Obstacle): 2,160 fpm, Landing Roll: 700 ft, Landing Roll (Over 50 ft Obstacle): 2,100 ft, Service Ceiling: 18,600 ft, Service Ceiling SE: 5,800 ft, Range: 775 NM, Extended Range: 882 NM

Engines

Engines Left Engine - Lycoming IO-320-B1A, S/N L-3247-55A, 160 HP, 2,000 TBO, 406 SMOH in June, 2010 by Poplar Grove Airmotive. Compressions 1-78/80, 2-72/80, 3-76/80, 4-72/80. Right Engine - Lycoming IO-320-B1A, S/N L-3239-55A, 160 HP, 2,000 TBO, 1,602 SMOH in September, 1996, 896 STOH in 2002, Last Compressions 1-72/80, 2-72/80, 3-76/80, 4-74/80.

Propellers

Propellers Dual Hartzell HC-E2YL-2BS 2-Blade Props. Left Prop - Hub S/N BG3157, 344 SPOH in February, 2019 by Maxwell Propeller. Right Prop - Hub S/N BG3158, 344 SPOH in February, 2019 by Maxwell Propeller.

Airframe Enhancements / Modifications

Paint Matterhorn White Base Color, Biege and Cranberry Red Trim stripes, Rated 7/10.
Interior Beige Leather Seats, Rated 7/10.
Other Modifications One Piece Windshield, Six Seats, Reiff Engine Sump Heaters, Jet Shades, GAMIjectors, Static Wicks, 3-Point Strobes, Small Nose Wheel STC, Tinted Glass, Flap Aileron & Rudder Gap Seals, Hub Caps, Polished Spinners, Metco Wingtips, Hubcaps, GAMIs, Vacuum System Removed, Vertical Card Compass, SkyTech Starters

Performance - PA30B

Speeds Never Exceed Speed Vne: 230 Kts, Max Structural Cruise Vno: 194 Kts, Maneuvering Speed Va: 162 Kts, Minimum Control Vmc: 90 Kts, Flaps Approach / Max Extension Speeds Vfe: 125 Kts, Landing Gear Extension Vlg: 150 Kts, Landing Gear Operation Vlo: 150 Kts, Stall Speed Vs: 76 Kts, Stall Speed (Dirty) Vso: 69 Kts, Best Rate Of Climb Vy: 112 Kts, Best Angle Vx: 90 Kts, Best Rate Of Climb (Single Engine) Vyse: 105 Kts, Best Angle of Climb (Single Engine) Vxse: 94 Kts, Single Engine Operation Vsse: 90 Kts, Cruise Climb: 97 Kts
Distances T/O Ground Roll: 1,250 ft, Takeoff Distance Over 50 ft Obstacle: 2,160 ft, Landing Distance: 700 ft, Landing Distance Over 50 ft Obstacle: 2,100 ft, Initial Rate Of Climb: 1,460 fpm, Service Ceiling 20,000 ft, Single Engine Service Ceiling: 7,100 ft, Normal Range 775 nm, Max Range: 882 nm
